Point Cloud as a Foreign Language for Multi-modal Large Language Model

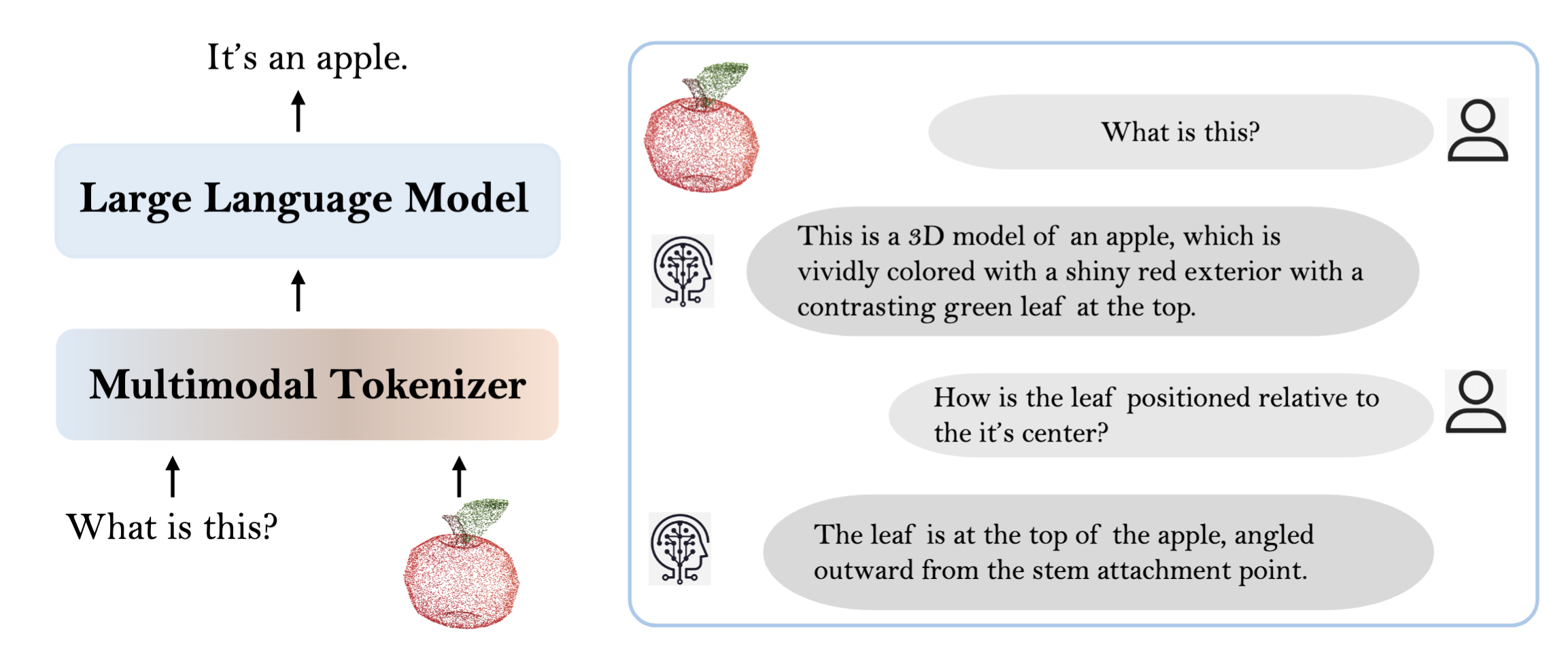

Add img/teaser.png to show the architecture / example conversation figure here.

Abstract

Multi-modal large language models (MLLMs) have shown remarkable progress in integrating visual and linguistic understanding. Recent efforts have extended these capabilities to 3D understanding through encoder-based architectures that rely on pre-trained 3D encoders to extract geometric features. However, such approaches suffer from semantic misalignment between geometric and linguistic spaces, resolution sensitivity, and substantial computational overhead.

In this work, we present SAGE, the first end-to-end 3D MLLM that directly processes raw point clouds without relying on a pre-trained 3D encoder. Our approach introduces a lightweight 3D tokenizer that combines geometric sampling and neighbourhood aggregation with vector quantization to convert point clouds into discrete tokens — treating 3D data as a foreign language that naturally extends the LLM's vocabulary.

Furthermore, to enhance the model's reasoning capability on complex 3D tasks, we propose a preference optimization training strategy with a semantic alignment–based reward, specifically designed for open-ended 3D question answering where responses are descriptive. Extensive experiments across diverse 3D understanding benchmarks demonstrate that our end-to-end approach outperforms existing encoder-based methods while offering significant advantages in computational efficiency, generalization across LLM backbones, and robustness to input resolution variations.

Method

SAGE treats a point cloud as a foreign language. A lightweight, trainable tokenizer projects raw point clouds into the LLM's input space via three steps:

1. Geometric sampling and grouping. Farthest Point Sampling selects representative centres; K-nearest neighbours form local sub-clouds; a local geometry aggregation module produces spatially-contextualized features.
2. Projection to LLM space. A learnable projection matrix maps geometric features into the LLM's embedding space.
3. Vector quantization. A learnable codebook discretizes the projected features into a finite vocabulary of 3D tokens — extending the LLM's tokenizer to the 3D domain.

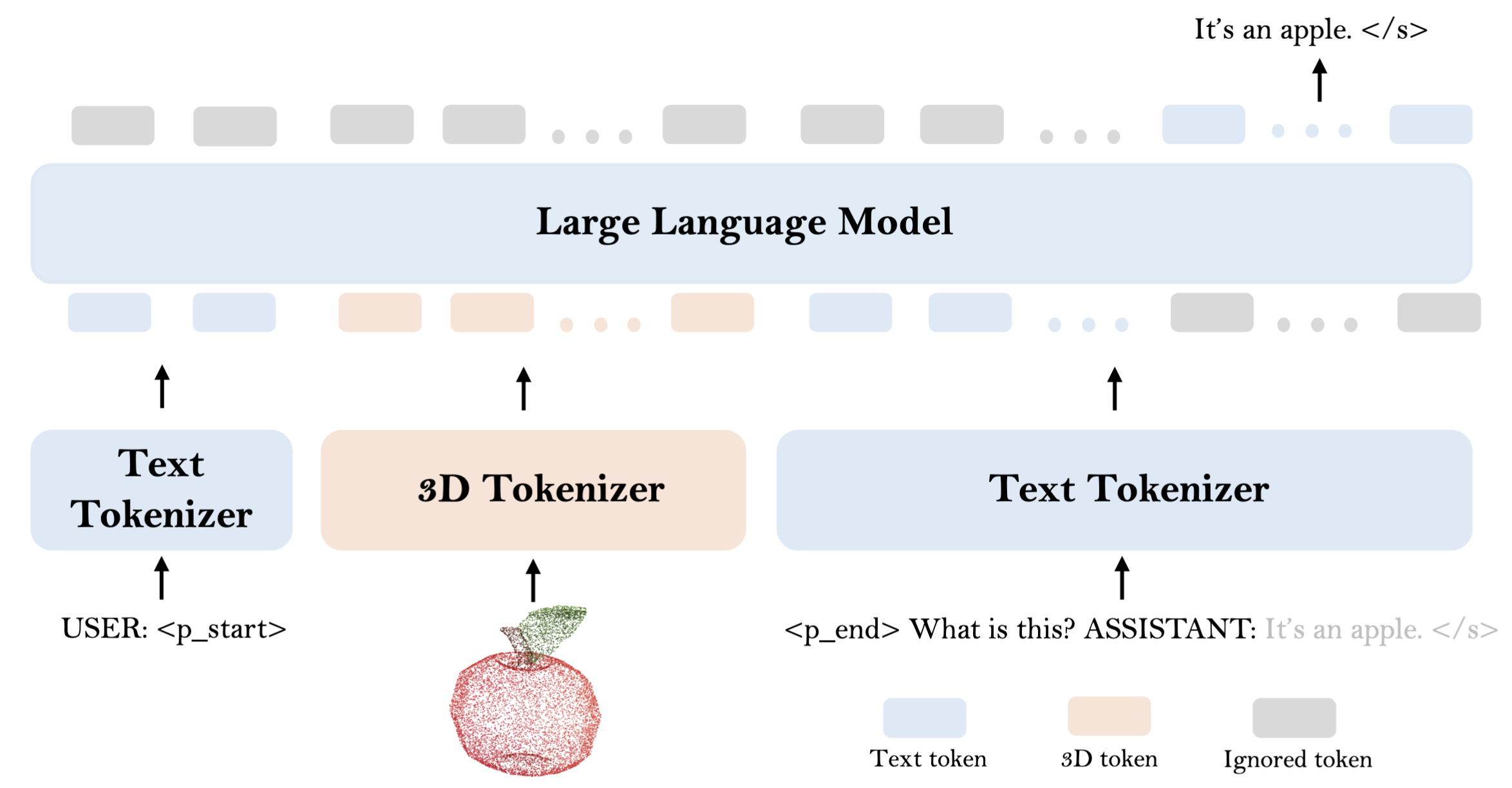

Add img/architecture.png — the architecture figure (Figure 2 from the paper).

Three-Stage Training

1. Stage 1 — 3D tokenizer warm-up. The tokenizer learns to produce meaningful discrete 3D tokens.
2. Stage 2 — Instruction tuning. The full model is trained on 3D instruction-following data.
3. Stage 3 — GRPO-based tuning. Preference optimization with a semantic-alignment reward enhances complex 3D reasoning.

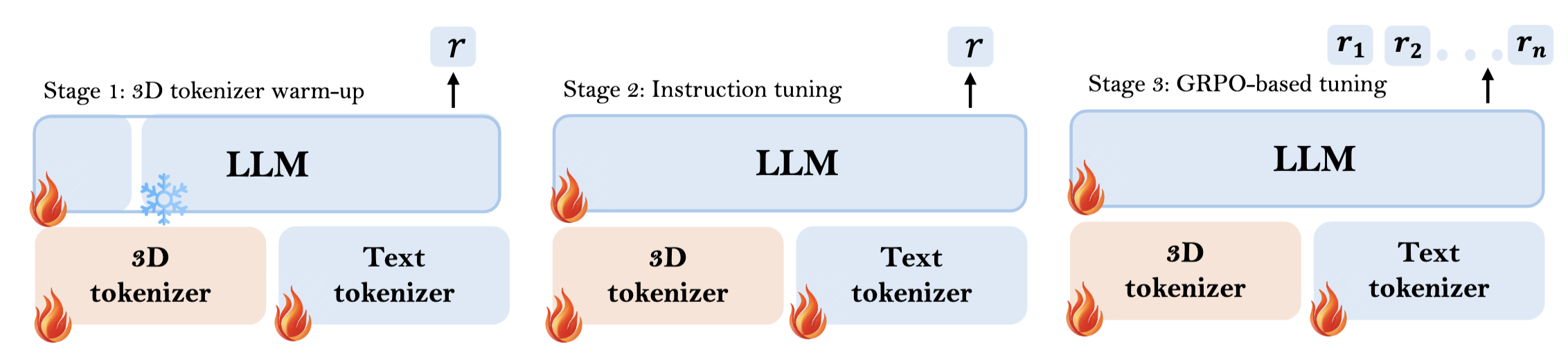

Add img/training.png — the three-stage training pipeline figure (Figure 3).

BibTeX

@article{paul2025sage,
  title   = {Point Cloud as a Foreign Language for Multi-modal Large Language Model},
  author  = {Paul, Sneha and Patterson, Zachary and Bouguila, Nizar},
  journal = {arXiv preprint},
  year    = {2025}
}
